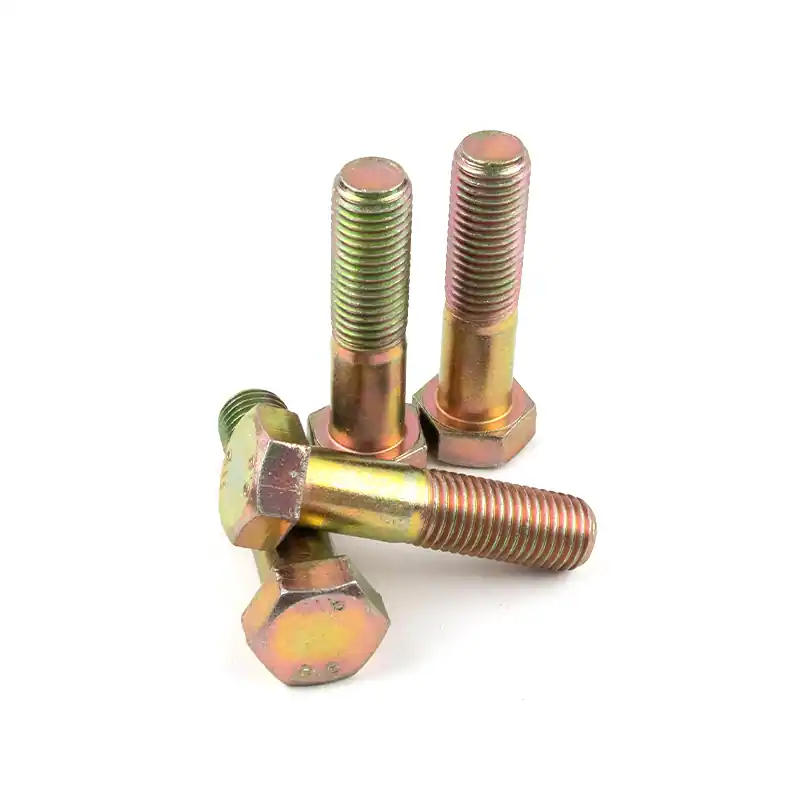

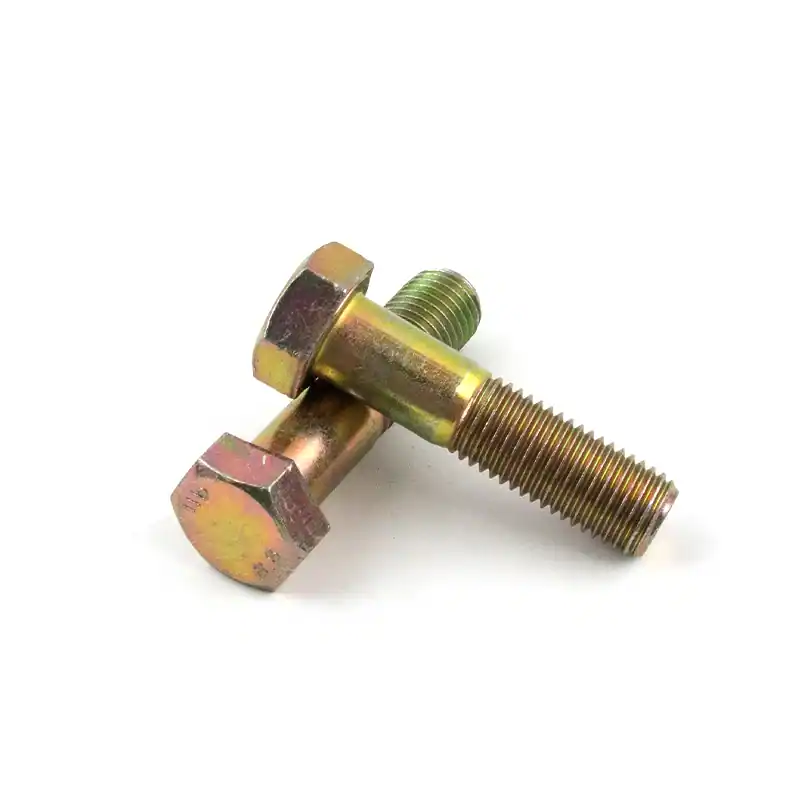

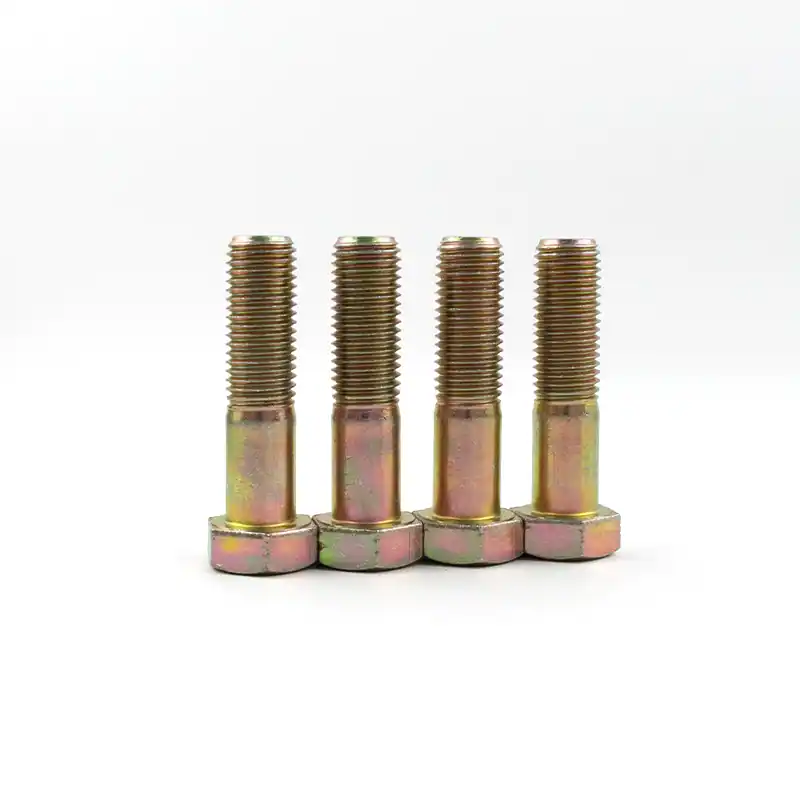

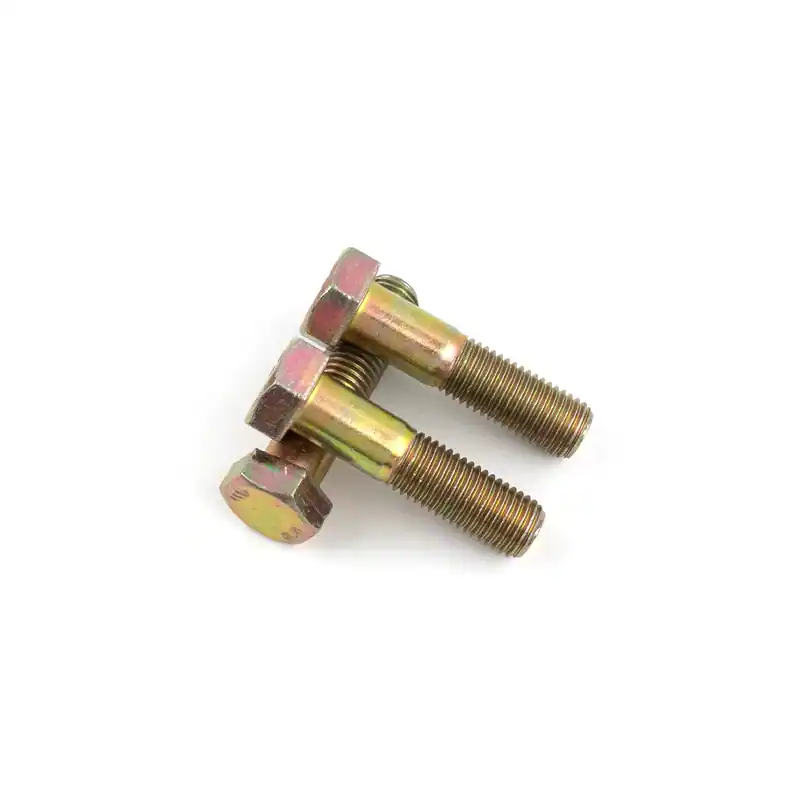

10.9 Grade Half Thread Hex Bolt Yellow Zinc Plated
| Product Name: | Half Thread Hex Bolt Yellow Zinc 10.9 |
| SKU: | HB-0017 |
| Price: | USD0.013 - USD0.343 / piece |
| MOQ: | 500 pieces (Min. Order) |
| Availability: | In Stock |
| Package: | BOX/Bag/Carton/Customized |
| Port: | Tianjin Port |
| Supply Ability: | 100000 pcs per month |
| Lead Time: | 7-30 days after deposit |
Acceptance:
OEM/ODM, Trade, Wholesale, Regional Agency
Payment:
30% Down Payment by TT + 70% Balance Before Shipment
Product Description
Our High Tensile Half Thread (Reduced Shank) Hex Bolt is engineered for critical applications demanding exceptional strength and reliability. Manufactured from alloy steel and heat-treated to achieve Grade 10.9 performance, this bolt offers a minimum tensile strength of 1040 MPa. The partially threaded design provides a non-threaded grip length for precise clamping, preventing loosening under high vibration. The bright and durable Yellow Zinc plating offers excellent corrosion resistance and a distinctive, quality appearance. This bolt is the preferred choice for OEMs, structural engineers, and maintenance teams in the most demanding environments.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Standard | ISO 4014, DIN 933, ASTM A449 | Thread Type | Partial (Half Length), Metric Coarse Thread |
| Head Type | Hexagon Head | Property Class | Grade 10.9 (High Tensile) |
| Drive Type | Wrench/Socket (Metric Sizes) | Coating / Finish | Yellow Zinc Plated (Chromate Finish) |
| Material | Medium Carbon Alloy Steel, Quenched & Tempered | Tensile Strength | 1040 MPa (min) |
| Yield Strength | 940 MPa (min) | Corrosion Resistance | High (Salt Spray Test: 120+ hours to white rust) |
| Hardness | 32-39 HRC |
Product Size (Hot-Selling Models for Middle East, Central & Southeast Asia)
We stock a comprehensive range of sizes. Below are our best-selling partially threaded bolts for structural applications.
| Diameter (mm) | Diameter (Inch approx.) | Full Length (mm) | Thread Length (mm) | Common Length (Inch) |
|---|---|---|---|---|
| M12 | 1/2″ | 40 – 120 | 30 | 1-1/2″ – 4-3/4″ |
| M16 | 5/8″ | 50 – 150 | 35 | 2″ – 6″ |
| M20 | 3/4″ | 60 – 200 | 40 | 2-3/8″ – 8″ |
| M24 | 1″ | 80 – 240 | 50 | 3-1/8″ – 9-1/2″ |
| M30 | 1-1/4″ | 100 – 300 | 60 | 4″ – 12″ |
Note: The M16x60, M20x80, and M24x100 are our top sellers for structural connections. The thread length is typically calculated as 2.5d + 6mm (e.g., M20 thread length ~ 50mm). Custom dimensions and threading are available.
Application Scenarios
These high-strength bolts are essential for critical connections in:
- Structural Steel Construction: Used in steel building framework connections, bolted beams, and pre-engineered metal buildings (PEMB) where high clamp force is required.
- Heavy Machinery and Equipment Manufacturing: Ideal for assembling heavy-duty industrial machinery, crushers, and press machines where vibration resistance is critical.
- Automotive Chassis and Suspension Systems: Specified by OEMs for high-stress automotive components, suspension linkages, and frame assembly.
- Wind Tower and Renewable Energy Infrastructure: Employed in flange connections for wind turbine towers and other energy projects demanding fatigue resistance.
- Bridge and Infrastructure Projects: Used in structural bolting for bridges and highway guardrail systems.
- Agricultural and Mining Equipment: Essential for high-abuse equipment assembly like tractors, excavators, and bulldozers.
