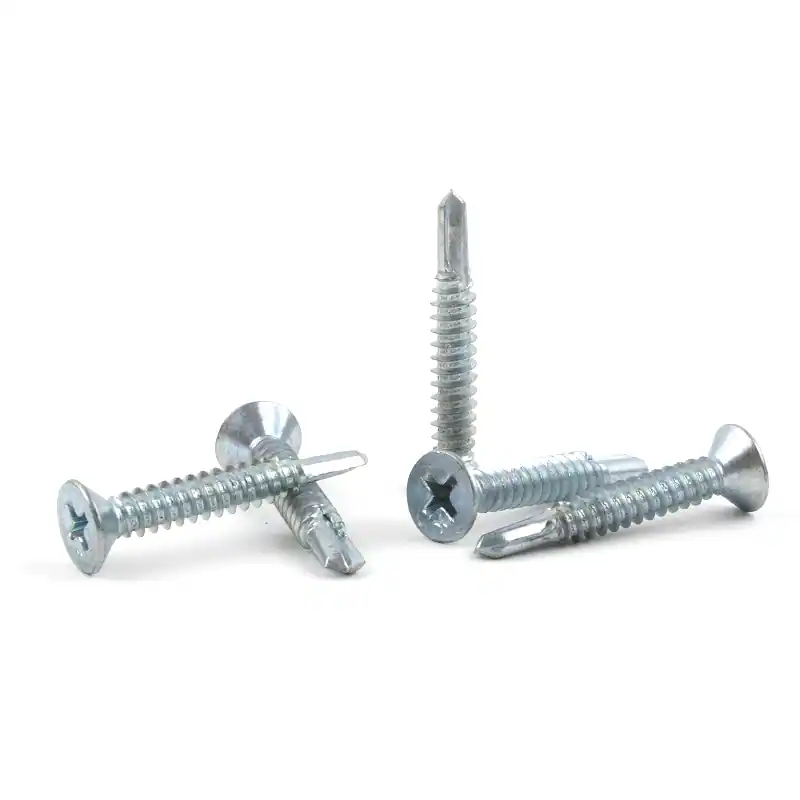

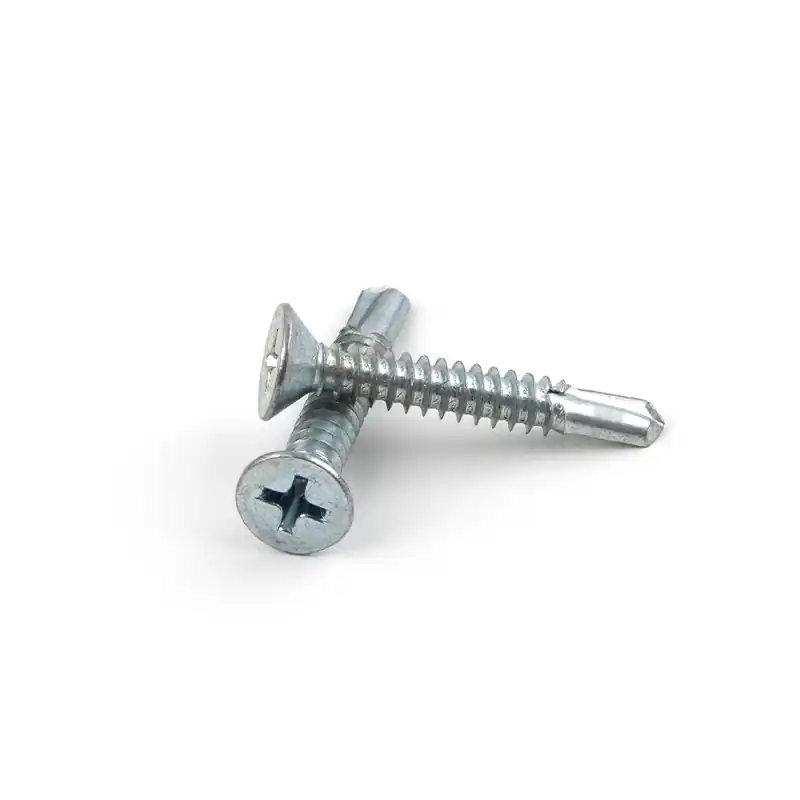

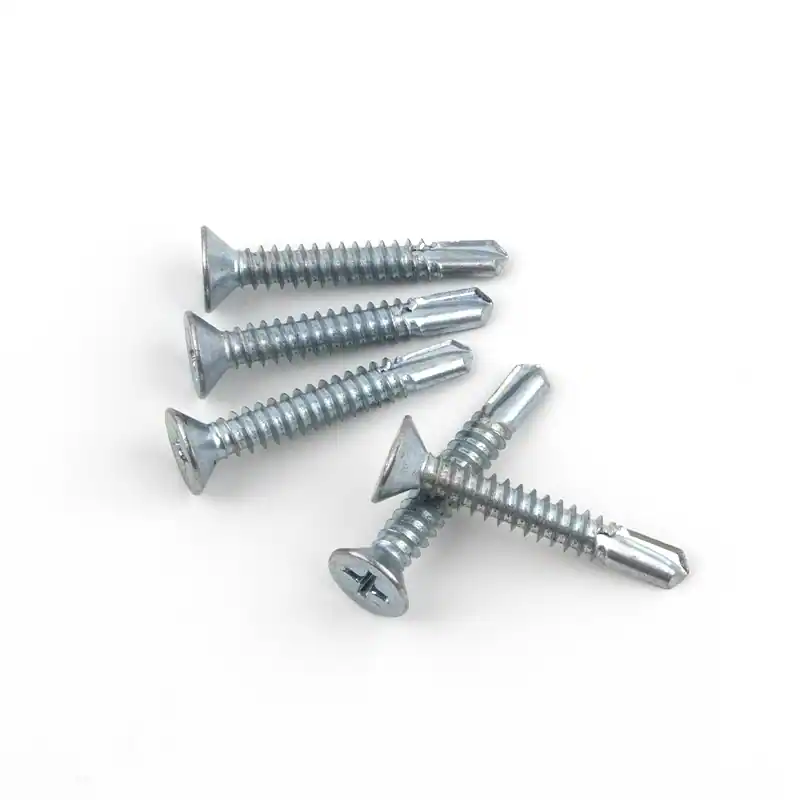

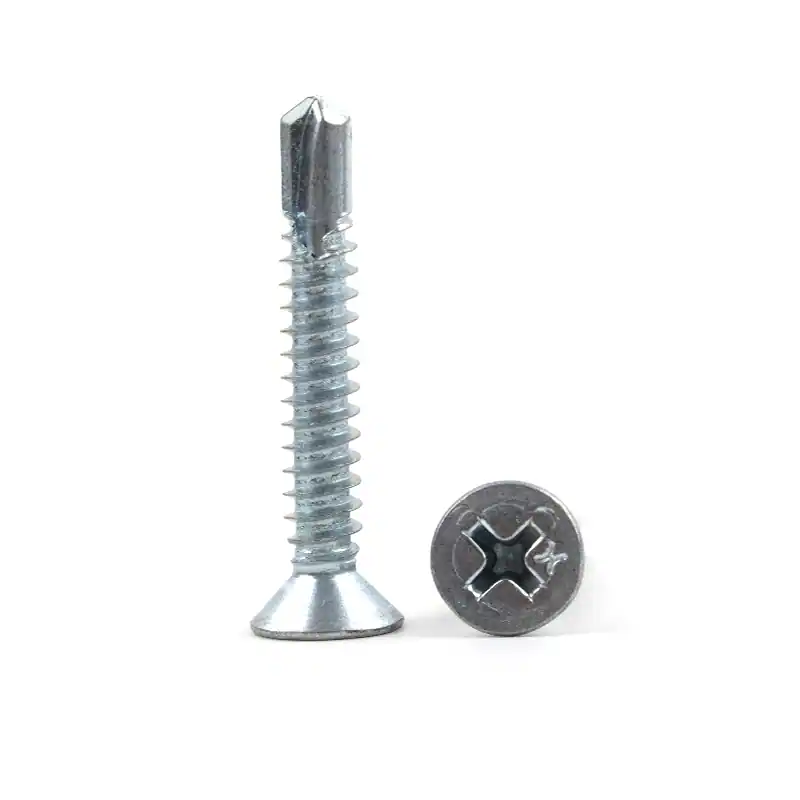

Bugle Head Fine Thread Self-Drilling Zinc Plated Drywall Screw
| Product Name: | Self-Drilling Zinc Plated Fine Thread Drywall Screw |
| SKU: | DS-0007 |
| Price: | USD0.001 - USD0.007 / piece |
| MOQ: | 1000 pieces (Min. Order) |
| Availability: | In Stock |
| Package: | BOX/Bag/Carton/Customized |
| Port: | Tianjin Port |
| Supply Ability: | 1000000 pcs per month |
| Lead Time: | 7-30 days after deposit |
Acceptance:
OEM/ODM, Trade, Wholesale, Regional Agency
Payment:
30% Down Payment by TT + 70% Balance Before Shipment
Product Description
Our Self-Drilling Zinc Plated Drywall Screw combines fast installation with superior holding power for metal framing applications. The bugle head design countersinks perfectly without tearing drywall paper, while the self-drilling point eliminates the need for pre-drilling in metal studs. The fine thread configuration ensures excellent thread engagement and vibration resistance in metal substrates. The zinc plating provides enhanced corrosion protection compared to phosphate finishes. These screws are essential for contractors seeking efficiency and reliability in metal frame construction projects.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Standard | ASTM C1513 | Thread Type | Fine Thread |
| Head Type | Bugle Head (Countersunk) | Point Type | Self-Drilling Point (Type 17) |
| Drive Type | Phillips #2 | Coating / Finish | Zinc Plated |
| Material | Low Carbon Steel | Strength Grade | Grade 2 |
| Corrosion Resistance | Enhanced Interior Protection | Drilling Capacity | Up to 14-gauge steel |
Product Size (Hot-Selling Models for Middle East, Central & Southeast Asia)
Popular sizes for metal stud applications in international markets.
| Length (Inch) | Length (mm) | Gauge (AWG) | Diameter (mm) |
|---|---|---|---|
| 1″ | 25.4 mm | #6 | 3.5 mm |
| 1-1/4″ | 31.8 mm | #6 | 3.5 mm |
| 1-5/8″ | 41.3 mm | #6 | 3.5 mm |
| 2″ | 50.8 mm | #7 | 4.2 mm |
| 2-1/4″ | 57.2 mm | #7 | 4.2 mm |
| 2-1/2″ | 63.5 mm | #8 | 4.8 mm |
| 3″ | 76.2 mm | #8 | 4.8 mm |
Note: 1-1/4″ (#6) for single layer and 2″ (#7) for double layer applications are our best sellers. All dimensions meet international standards.
Application Scenarios
Perfect for various metal framing applications:
- Drywall to metal stud installation in commercial buildings
- Gypsum board attachment to steel framing systems
- Metal channel installation for ceiling systems
- HVAC duct mounting and equipment installation
- Light gauge steel construction projects
- Commercial partition wall systems with metal studs
- Retail store fixtures and display mounting
