Product Details
Product Description

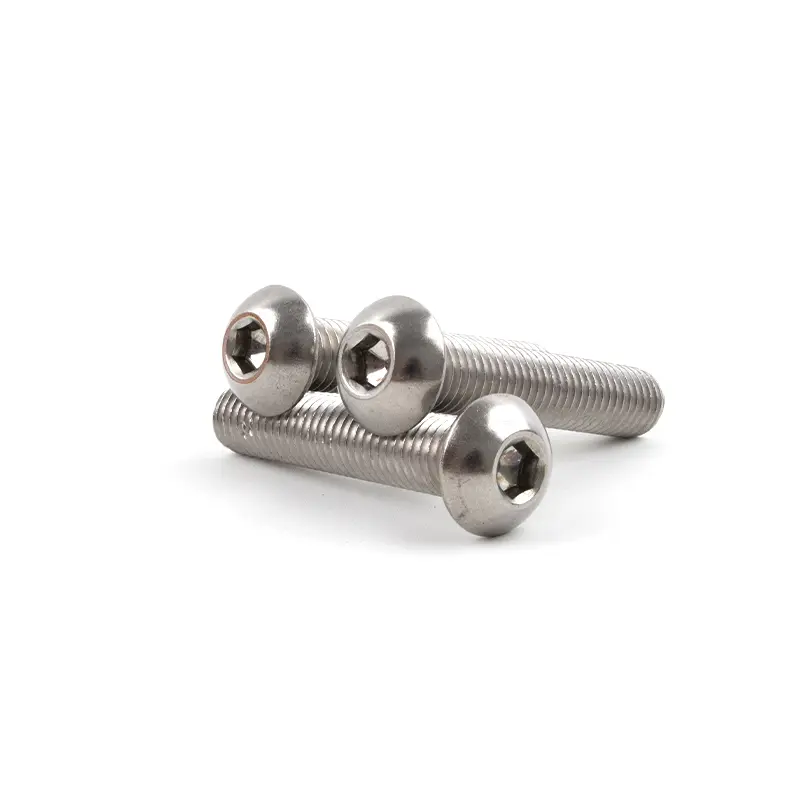

China factory direct supply A2-70 stainless steel button head socket cap screws for wholesale. These versatile screws feature a low-profile rounded head with internal hex drive, providing a smooth finished appearance while offering reliable fastening. Made from A2-70 stainless steel, they offer excellent corrosion resistance for indoor and outdoor applications. Perfect for decorative hardware, electronics, furniture, and machinery where appearance and corrosion resistance are important. Bulk discounts available for distributors and manufacturers.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Standard | ISO 7380, DIN 7380 | Head Type | Button Head |
| Drive Type | Hex Socket | Thread Type | Full Thread |
| Property Class | A2-70 | Material | Stainless Steel 304 |
| Finish | Natural | Tensile Strength | 700 MPa |
| Yield Strength | 450 MPa | Hardness | 70-90 HRB |
| Corrosion Resistance | Excellent | Temperature Range | Up to 400°C |
Product Size (Popular Specifications)
Standard button head socket cap screw specifications:
| Diameter (mm) | Diameter (Inch) | Length (mm) | Length (Inch) | Head Diameter (mm) |
|---|---|---|---|---|
| M3 | #6 | 6-30 | 1/4″-1-1/4″ | 5.7 |
| M4 | #8 | 8-40 | 5/16″-1-1/2″ | 7.6 |
| M5 | #10 | 10-50 | 3/8″-2″ | 9.5 |
| M6 | 1/4″ | 12-60 | 1/2″-2-1/2″ | 11.5 |
| M8 | 5/16″ | 16-80 | 5/8″-3″ | 15.4 |
Note: Custom sizes available for OEM orders
Application Scenarios
Decorative and functional applications:
- Electronic equipment assembly
- Furniture and cabinet hardware
- Automotive interior components
- Consumer products
- Medical equipment
- Marine hardware
- Architectural metalwork
