DIN 6923 Flange Nut Zinc Plated Grade 8
| Product Name: | Flange Nut DIN 6923 Zinc Plated Grade 8 |
| SKU: | HN-009 |
| Price: | USD0.003 - USD0.289 / piece |
| MOQ: | 500 pieces (Min. Order) |
| Availability: | In Stock |
| Package: | BOX/Bag/Carton/Customized |
| Port: | Tianjin Port |
| Supply Ability: | 500000 pcs per month |
| Lead Time: | 7-30 days after deposit |
Acceptance:
OEM/ODM, Trade, Wholesale, Regional Agency
Payment:
30% Down Payment by TT + 70% Balance Before Shipment
Product Description

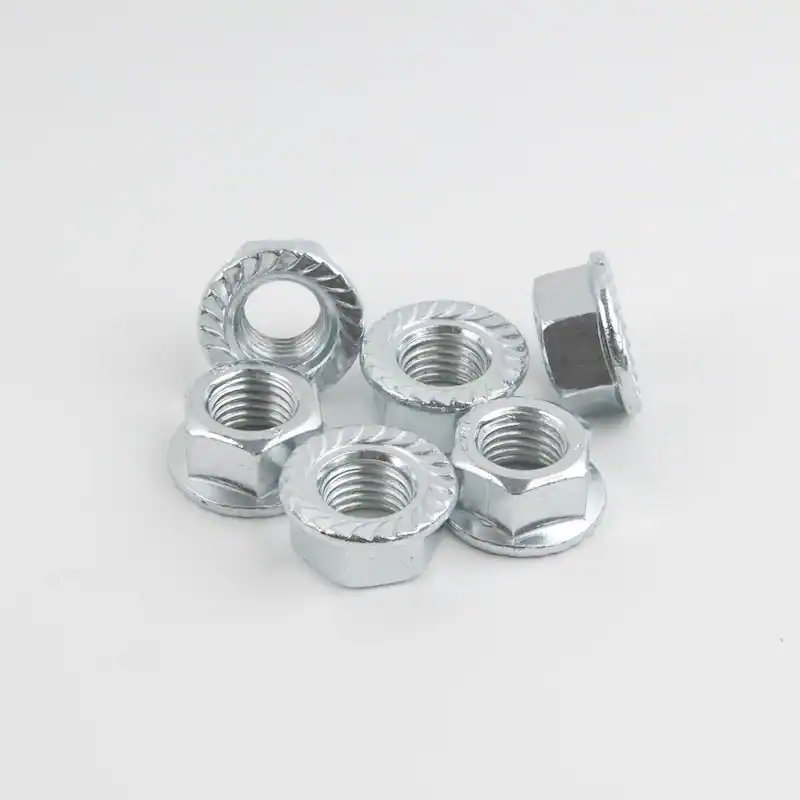

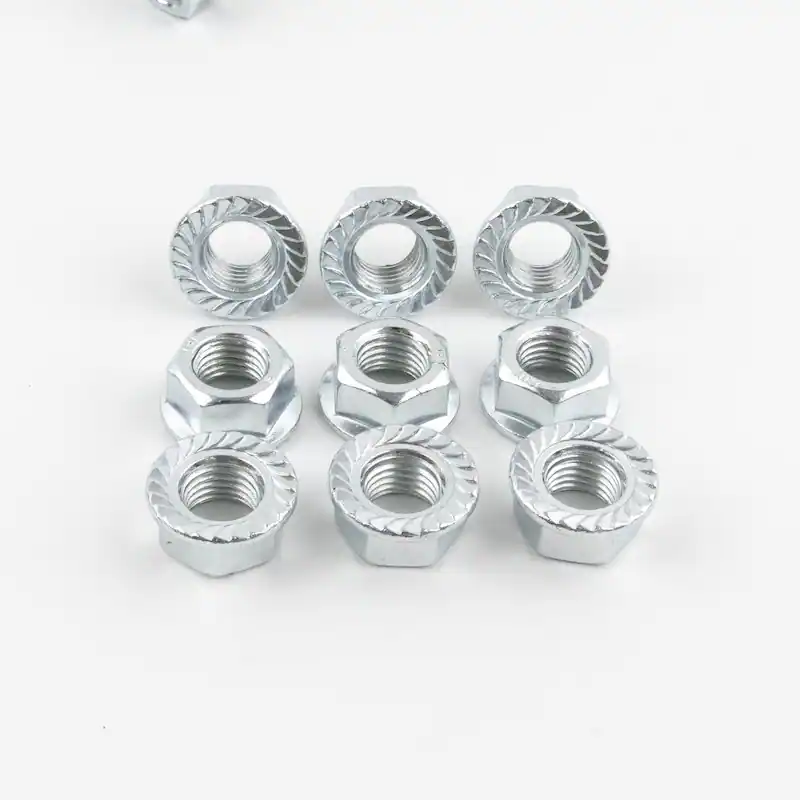

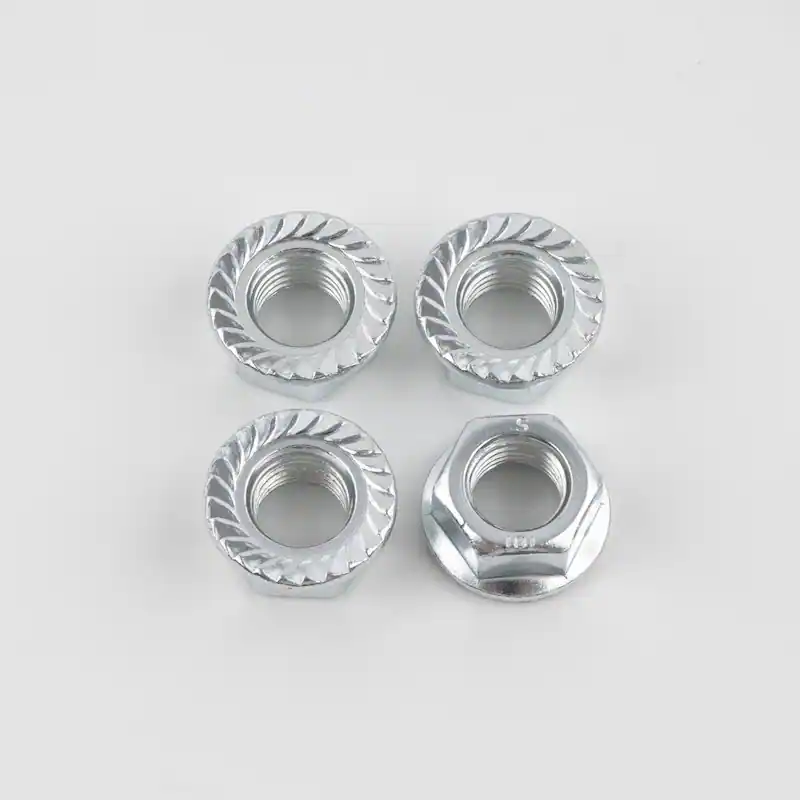

Our Flange Nut, manufactured to the precise DIN 6923 standard, is a high-performance fastening solution that combines a hex nut with an integrated, non-rotating flange. This design eliminates the need for a separate washer, reducing assembly time and inventory costs. The flange features concentric serrations (zig-zag teeth) on its bearing surface that bite into the contact material, providing exceptional resistance to loosening under severe vibration and dynamic loads. Heat-treated to Grade 8 mechanical properties, this nut ensures a reliable, high-strength connection. The clear zinc plating offers effective corrosion protection and a clean, industrial finish, making it a versatile and robust choice for demanding applications in automotive, machinery, and structural assembly.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Standard | DIN 6923, ISO 4161 | Nut Style | Hex Flange Nut with Serrations |
| Drive Type | Wrench/Socket | Property Class | Grade 8 (Metric 8) |
| Coating / Finish | Zinc Plated (Clear Chromate) | Material | Medium Carbon Steel, Quenched & Tempered |
| Proof Load Stress | 580 MPa | Hardness | 22-32 HRC |
| Serrations | Concentric, on flange bearing surface | Corrosion Resistance | Good (Salt Spray Test: 96+ hours to white rust) |
| Meets | ISO 2320 Prevailing Torque Performance |
Product Size (Hot-Selling Models for Middle East, Central & Southeast Asia)
We stock a wide range of sizes to pair with high-strength bolts. Below are the most popular sizes for our B2B clients.
| Thread Size (Metric) | Thread Diameter (mm) | Across Flats (mm) | Across Flats (Inch) | Flange Diameter (mm) |
|---|---|---|---|---|
| M6 | 6 mm | 10 mm | 3/8″ | 16.5 mm |
| M8 | 8 mm | 13 mm | 1/2″ | 21.1 mm |
| M10 | 10 mm | 16 mm | 5/8″ | 25.6 mm |
| M12 | 12 mm | 18 mm | 11/16″ | 30.7 mm |
| M16 | 16 mm | 24 mm | 15/16″ | 39.4 mm |
Note: The M8, M10, and M12 sizes are our top sellers for automotive and general machinery applications. All dimensions strictly comply with DIN 6923. Custom packaging and OEM branding are available.
Application Scenarios
This serrated flange nut is engineered for high-vibration environments where safety is critical:
- Automotive Chassis and Engine Mounting: Widely used in suspension system assembly, engine mounting brackets, and exhaust system fastening to prevent loosening from constant vibration.
- Heavy Machinery and Equipment Assembly: Ideal for securing hydraulic components, vibrating conveyor frames, agricultural equipment, and construction machinery.
- Electrical Panel and Control Cabinet Manufacturing: Used to secure heavy electrical components and busbars within panels, where the serrations ensure electrical continuity and a solid ground.
- Transportation and Trailer Manufacturing: Essential for wheel hub assembly, trailer hitch connections, and body panel attachment in trucks and trailers.
- Industrial Robotics and Automation: Provides reliable fastening for robotic arm joints, linear guide mounts, and other precision equipment susceptible to micro-vibrations.
- General Maintenance, Repair, and Operations (MRO): A versatile upgrade for factory maintenance kits, replacing standard nut/washer combinations for improved reliability.
