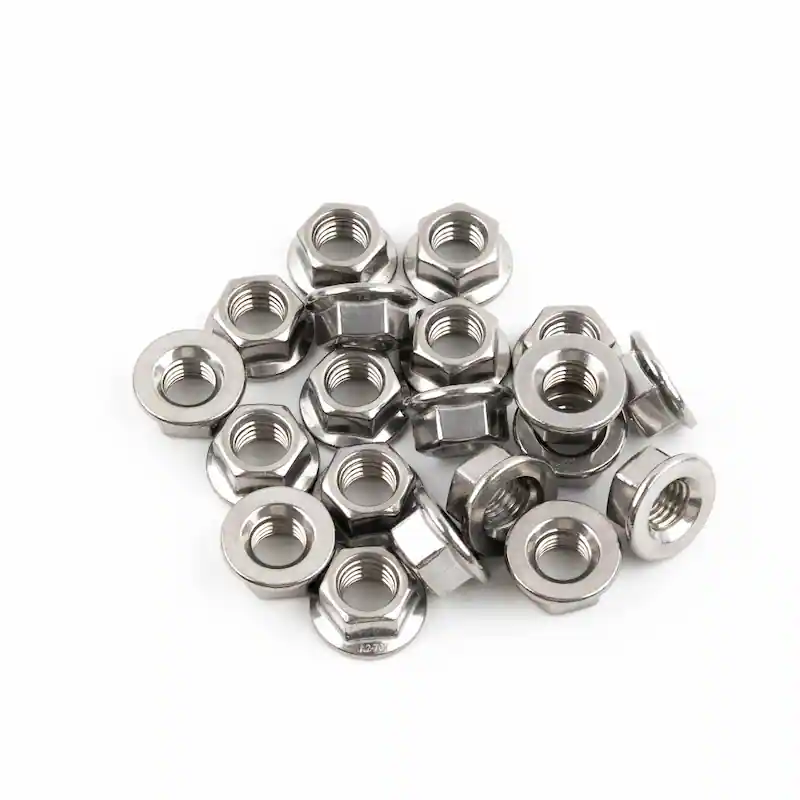

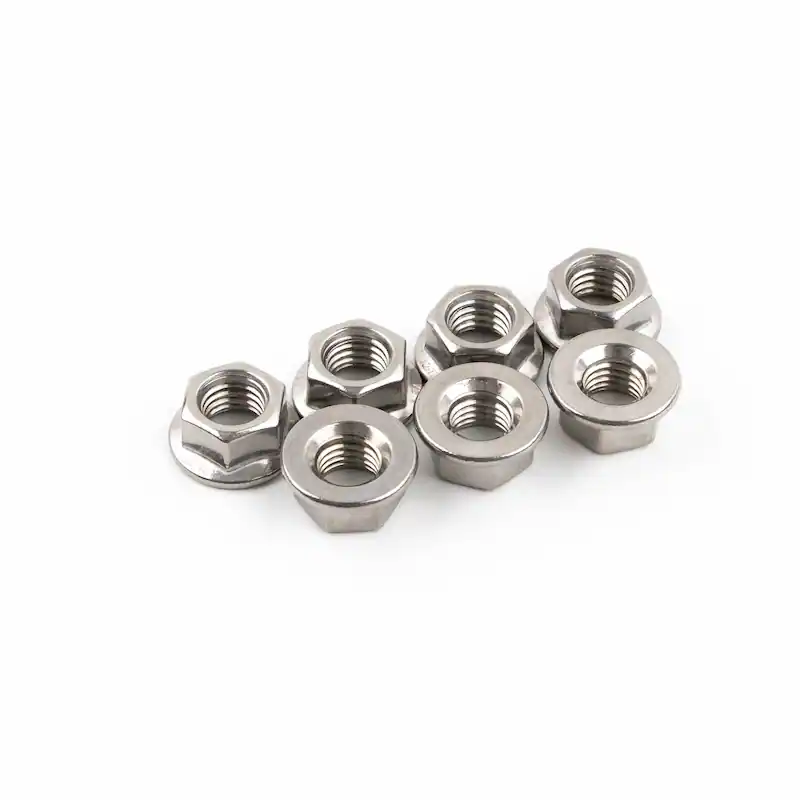

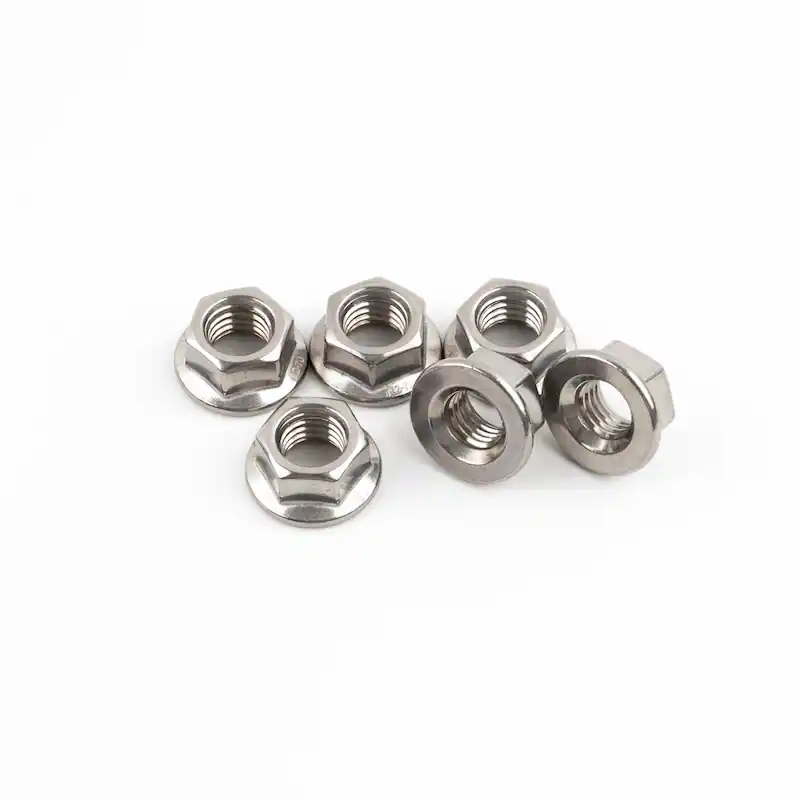

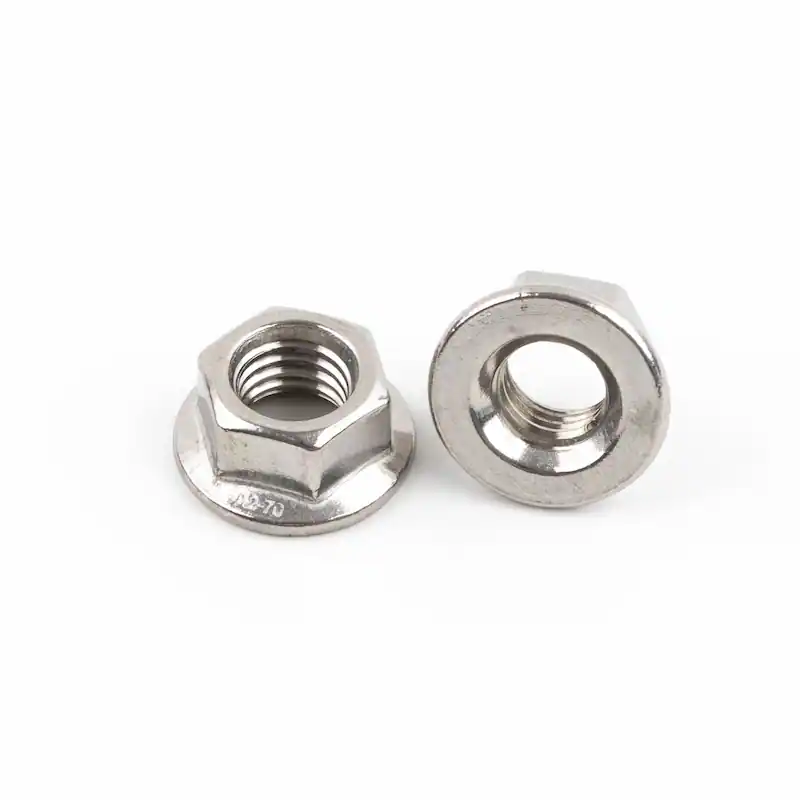

DIN 6923 Stainless Steel Flange Nut A4-80
| Product Name: | Flange Nut DIN 6923 Stainless Steel A4-80 |
| SKU: | HN-014 |
| Price: | USD0.01 - USD0.646 / piece |
| MOQ: | 500 pieces (Min. Order) |
| Availability: | In Stock |
| Package: | BOX/Bag/Carton/Customized |
| Port: | Tianjin Port |
| Supply Ability: | 500000 pcs per month |
| Lead Time: | 7-30 days after deposit |
Acceptance:
OEM/ODM, Trade, Wholesale, Regional Agency
Payment:
30% Down Payment by TT + 70% Balance Before Shipment
Product Description
Our Flange Nut, precision-manufactured from A4-80 (316) stainless steel to the DIN 6923 standard, is the ultimate solution for highly corrosive and demanding environments. This high-strength nut integrates a hexagonal body with a wide, serrated flange, eliminating the need for a separate washer and providing a permanent, vibration-resistant locking mechanism. The A4-80 grade stainless steel offers exceptional resistance to saltwater, chemicals, and extreme temperatures, making it indispensable for marine, offshore, and chemical processing applications. The polished, non-porous surface also meets hygiene requirements for food and pharmaceutical industries. Engineered for reliability and longevity, this nut ensures a secure, maintenance-free connection where failure is not an option.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Standard | DIN 6923 | Nut Style | Hex Flange Nut with Serrations |
| Drive Type | Wrench/Socket | Property Class | A4-80 (Stainless Steel Grade) |
| Material | Austenitic Stainless Steel (AISI 316) | Finish | Natural (Mill Finish) |
| Proof Load Stress | 600 MPa | Hardness | 223 HB (min) |
| Serrations | Concentric, on flange bearing surface | Corrosion Resistance | Excellent (Resists pitting & crevice corrosion) |
| Working Temperature | Up to 400°C (752°F) | Magnetic Properties | Essentially Non-Magnetic |
| Compliance | RoHS, REACH |
Product Size (Hot-Selling Models for Middle East, Central & Southeast Asia)
We stock a comprehensive range of sizes to meet the demands of marine and industrial sectors.
| Thread Size (Metric) | Across Flats (mm) | Across Flats (Inch) | Flange Diameter (mm) | Flange Thickness (mm) |
|---|---|---|---|---|
| M6 | 10 mm | 3/8″ | 16.5 mm | 2.6 mm |
| M8 | 13 mm | 1/2″ | 21.1 mm | 3.1 mm |
| M10 | 16 mm | 5/8″ | 25.6 mm | 3.7 mm |
| M12 | 18 mm | 11/16″ | 30.7 mm | 4.6 mm |
| M16 | 24 mm | 15/16″ | 39.4 mm | 5.9 mm |
Note: The M8, M10, and M12 sizes are our top sellers for general industrial and marine applications. All dimensions strictly comply with DIN 6923. Custom sizes and special packaging available for large projects.
Application Scenarios
This nut is specified for critical applications where corrosion and vibration are major concerns:
- Marine and Offshore Engineering: Essential for boat building, deck hardware installation, offshore platform construction, and underwater fittings due to unparalleled saltwater resistance.
- Chemical and Pharmaceutical Processing: Ideal for reactor assembly, piping systems, and equipment fabrication where resistance to aggressive chemicals and acids is required.
- Food and Beverage Industry: The preferred choice for food processing machinery, mixers, conveyors, and brewing tanks thanks to its hygienic, easy-to-clean, and non-contaminating surface.
- Architectural and Coastal Construction: Used in seaside facades, handrail systems, and bridge components exposed to harsh weather and de-icing salts.
- Water Treatment and Desalination Plants: Critical for filter systems, pump connections, and valve assemblies in both fresh and saltwater environments.
- High-Temperature Applications: Suitable for exhaust system components and industrial ovens due to its stability at elevated temperatures.
